Purpose-built for L3Harris tactical radio platforms

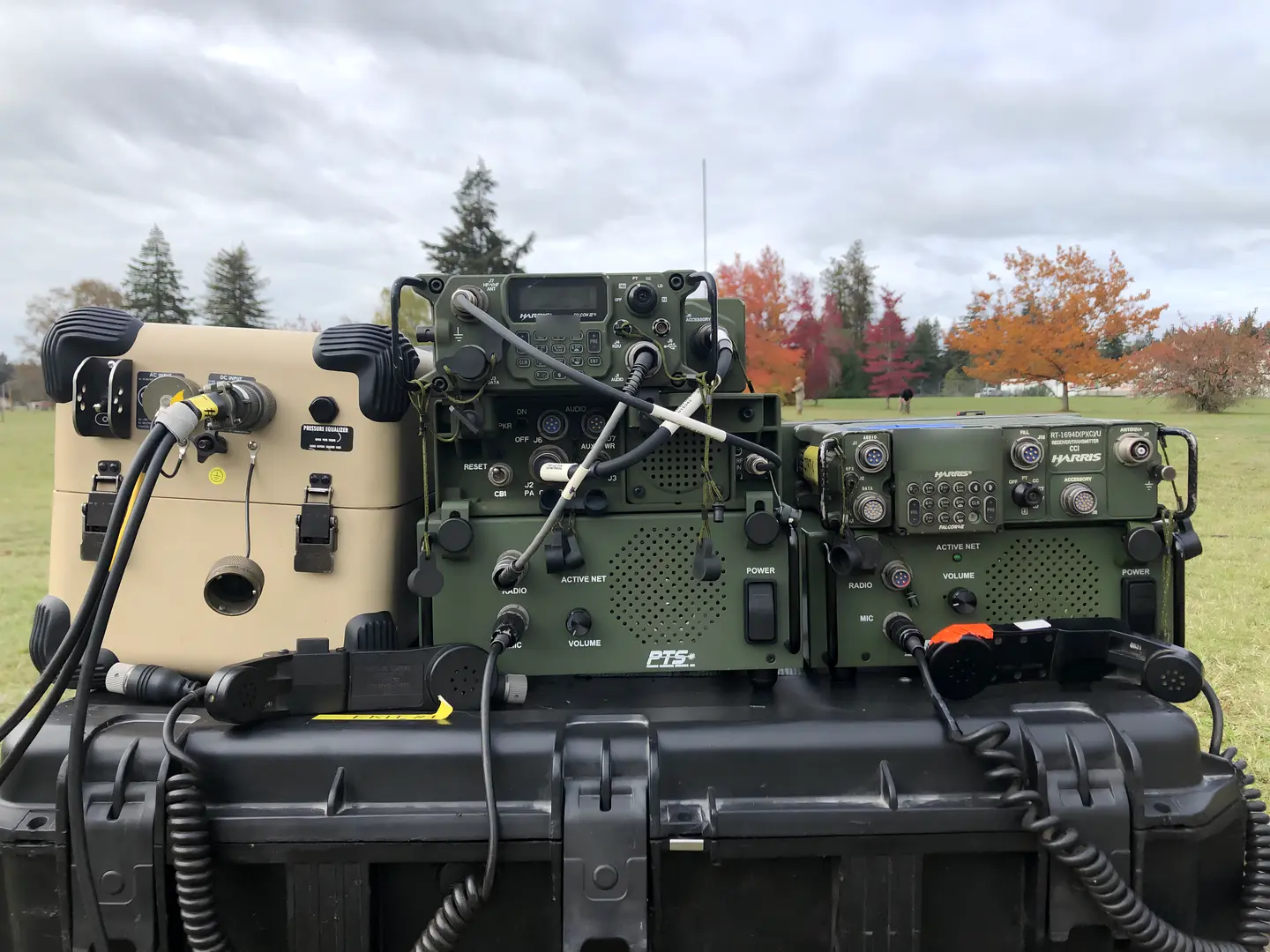

PTS manufactures a complete line of Power Supply Docking Stations purpose-built for the full range of L3Harris tactical radio platforms. From single-radio manpack configurations to complex cross-platform installations combining multiple radio systems and power amplifiers, PTS has a PSDS designed for your specific mission requirement.
Every PTS L3Harris PSDS provides regulated conditioned power from any available source, secure docking in fixed and semi-fixed environments, and full audio output capability. Whether deployed in a command post, a TOC, a forward operating base, or a tactical or non-tactical vehicle, PTS PSDS systems enable Signal teams to have L3Harris radios operational within minutes of arrival. No assembly. No specialized tools. Connect power, dock the radio, establish comms.
Contact PTS to confirm the correct PSDS model for your specific radio configuration and mission requirement.
Select your configuration
PTS manufactures 11 PSDS configurations for L3Harris radio platforms. Find the model that matches your radio and mission requirement.
AN/PRC-117 Series
AS0117-HR-117F
AN/PRC-117F — single radio
- Compatible radio
- AN/PRC-117F (L3Harris)
- Docking capacity
- 1 radio
- Special note
- Includes 3 terminal lugs for power amplifiers
- Includes
- 1 PTS-H-0003J cable
- AC input
- 85–260 VAC
- DC input
- 20–33 VDC
- Operating temp
- -20°C to 70°C
- Relative humidity
- 5% to 95%
- Weight
- 15.1 lbs (35.1 lbs with MIL-SPEC transit case)
- Dimensions
- 15" x 13.3" x 9.9"
AS0117-HR-117G
AN/PRC-117G — single radio (manpack)
- Compatible radio
- AN/PRC-117G (L3Harris)
- Docking capacity
- 1 radio
- Includes
- 1 PTS-H-0003J cable
- AC input
- 85–260 VAC
- DC input
- 20–33 VDC
- Operating temp
- -20°C to 70°C
- Relative humidity
- 5% to 95%
- Weight
- 9.1 lbs (23.1 lbs with MIL-SPEC transit case)
- Dimensions
- 11.5" x 11.9" x 8.4"
AS0117-HR-117G-D
AN/PRC-117G — dual radio (manpack)
- Compatible radio
- AN/PRC-117G (L3Harris)
- Docking capacity
- 1 or 2 radios
- Includes
- 2 PTS-H-0003J cables
- AC input
- 85–260 VAC
- DC input
- 20–33 VDC
- Operating temp
- -20°C to 70°C
- Relative humidity
- 5% to 95%
- Weight
- 16 lbs (36 lbs with MIL-SPEC transit case)
- Dimensions
- 15.8" x 12.5" x 9.9"
AN/PRC-117G Cross-Platform Configurations
These configurations dock the AN/PRC-117G alongside additional radio systems and power amplifiers for cross-platform command post installations.
AS0117-HR-117G/152
AN/PRC-117G + AN/PRC-152
- Compatible radios
- AN/PRC-117G and/or AN/PRC-152
- Note
- Requires RF-300M PA for AN/PRC-117G
- Note
- Contact PTS for current AN/PRC-152 amplifier compatibility
- Includes
- 2 PTS-H-0004J cables
- AC input
- 85–260 VAC
- DC input
- 20–33 VDC
- Operating temp
- -20°C to 70°C
- Relative humidity
- 5% to 95%
- Weight
- 18.1 lbs (38 lbs with MIL-SPEC transit case)
- Dimensions
- 17.5" x 14" x 9.4"
AS0117-HR-117G/1523
AN/PRC-117G + SINCGARS RT-1523
- Compatible radios
- 1 AN/PRC-117G + 1 RT-1523 (E/F) ASIP
- Includes
- 1 PTS-H-0003J cable
- AC input
- 85–260 VAC
- DC input
- 20–33 VDC
- Operating temp
- -20°C to 70°C
- Relative humidity
- 5% to 95%
- Weight
- Contact PTS for specifications
- Dimensions
- Contact PTS for specifications
AS0117-HR-117G/1523HP
AN/PRC-117G or PRC-152A + SINCGARS RT-1523 + L3Harris PA
- Compatible radios
- 1 AN/PRC-117G OR AN/PRC-152A + 1 RT-1523 (E/F) ASIP
- Compatible amplifiers
- RF-300M-V150 (required) + AM-7238B RFPA
- Includes
- 1 PTS-H-0004J cable
- AC input
- 85–260 VAC
- DC input
- 20–33 VDC
- Operating temp
- -20°C to 70°C
- Relative humidity
- 5% to 95%
- Weight
- Contact PTS for specifications
- Dimensions
- Contact PTS for specifications
AN/PRC-150 Series
AS0150-HR-150
AN/PRC-150 — single radio
- Compatible radio
- AN/PRC-150 (L3Harris)
- Docking capacity
- 1 radio
- Includes
- 1 PTS-H-0003J cable
- AC input
- 85–260 VAC
- DC input
- 20–33 VDC
- Operating temp
- -20°C to 70°C
- Relative humidity
- 5% to 95%
- Weight
- 9.2 lbs (25 lbs with MIL-SPEC transit case)
- Dimensions
- 11.5" x 11.4" x 8.3"
AS0150-HR-5833
AN/PRC-150 or PRC-160 + RF-5833H PA
- Compatible radios
- AN/PRC-150 or AN/PRC-160 (AN/PRC-160 requires L3Harris-supplied docking plate)
- Compatible amplifier
- RF-5833H PA (required)
- Includes
- 1 PTS-H-0003J cable + CAB.DPW.001 150W VA PWR cable
- AC input
- 85–260 VAC
- DC input
- 20–33 VDC
- Operating temp
- -20°C to 70°C
- Relative humidity
- 5% to 95%
- Weight
- 9 lbs (24 lbs with MIL-SPEC transit case)
- Dimensions
- 11.5" x 13.6" x 6.7"
AS0150-HR-5833/1523
AN/PRC-150 or PRC-160 + SINCGARS RT-1523 + RF-5833H PA
- Compatible radios
- 1 AN/PRC-150 or AN/PRC-160 (requires L3Harris-supplied docking plate) + 1 RT-1523 (E/F) ASIP
- Compatible amplifiers
- AM-7238B RFPA + RF-5833H PA (required)
- Includes
- 1 PTS-H-0003J cable + CAB.DPW.001 150W PA PWR cable
- AC input
- 85–260 VAC
- DC input
- 20–33 VDC
- Operating temp
- -20°C to 70°C
- Weight
- Contact PTS for specifications
- Dimensions
- Contact PTS for specifications
AN/PRC-160
AS0160-HR-160
AN/PRC-160 — single radio
- Compatible radio
- AN/PRC-160 (L3Harris)
- NSN
- 5820-01-738-8667
- Docking capacity
- 1 radio
- Includes
- 1 PTS-H-0003J cable
- AC input
- 85–260 VAC
- DC input
- 20–33 VDC
- Operating temp
- -30°C to 50°C
- Relative humidity
- 5% to 95%
- Weight
- 9.2 lbs (25 lbs with MIL-SPEC transit case)
- Dimensions
- 11.5" x 11.4" x 8.3"
AN/PRC-158 / AN/PRC-167
AS0158-HR-158
AN/PRC-158 and AN/PRC-167 — single radio
- Compatible radios
- AN/PRC-158 and AN/PRC-167 (L3Harris)
- NSN
- 5820-01-738-8657
- Docking capacity
- 1 radio
- Includes
- 2 PTS-H-0003J cables
- AC input
- 85–260 VAC
- DC input
- 20–33 VDC
- Operating temp
- -20°C to 70°C
- Relative humidity
- 5% to 95%
- Weight
- 15 lbs (30 lbs with MIL-SPEC transit case)
- Dimensions
- 12.5" x 16" x 10"
Not sure which model fits your requirement? Contact PTS at 256-539-6787 or info@pts-inc.com and we will confirm the right configuration for your radio, amplifier, and mission.
Key features
11 configurations
Purpose-built configurations for 11 L3Harris radio platforms.
Single & dual radio
Single and dual radio configurations available.
Cross-platform docking
Cross-platform docking for mixed radio installations.
Universal power input
85–260 VAC and 20–33 VDC — worldwide power compatibility with no reconfiguration.
Conditioned output
Regulated conditioned power output protects radio electronics in field conditions.
5-minute setup
Comms operational in under 5 minutes — no tools, no assembly required.
Flexible installation
Fixed and semi-fixed installation: CP, TOC, FOB, tactical and non-tactical vehicles.
COTS design
COTS design — suitable for expeditionary field use.
Made in USA
Made in North Alabama, USA — export-controlled (not ITAR).
Common specifications across all L3Harris PSDS models
Specifications vary by model. See individual variant cards above for model-specific dimensions, weight, and compatibility details. Contact PTS to confirm specifications for your specific configuration.
| Parameter | Value |
|---|---|
| Compatible Platforms | AN/PRC-117F, AN/PRC-117G, AN/PRC-150, AN/PRC-152, AN/PRC-158, AN/PRC-160 (L3Harris) |
| AC Input Range | 85–260 VAC (all models) |
| DC Input Range | 20–33 VDC (most models — confirm per variant) |
| Operating Temp (most models) | -20°C to 70°C |
| Relative Humidity | 5% to 95% |
| Environmental Rating | COTS — suitable for expeditionary field environments |
| Export Classification | Export-controlled — ECCN on request |
| Cage Code | 06AE7 |
| GSA Contract | 47QSWA22D008V (NAICS 334220) |
| Country of Origin | USA (North Alabama) |
Where the PSDS performs
Expeditionary Command Post
Rapid multi-platform comms establishment with no permanent installation required.
Combat Operation Center (COC)
Reliable conditioned power for sustained multi-radio operations.
Forward Operating Base (FOB)
Universal power input for generator or battery operation worldwide.
Tactical & Non-Tactical Vehicles
Install L3Harris communications in tactical and commercial vehicles without permanent vehicle modification.
Garrison Training Range
Standardized setup across the full L3Harris radio family for training realism.
Electronic Maintenance Facilities
Test and maintain L3Harris radio systems with consistent conditioned power.
Need a docking station for a different radio?
How to procure
PTS PSDS products for L3Harris radio platforms are available through multiple procurement channels.
GSA Schedule
Multiple Award Schedule (MAS)
- Contract
- 47QSWA22D008V
- NAICS
- 334220
- Period
- August 30, 2022 – August 29, 2027
Order directly through GSA Advantage using MAS contract 47QSWA22D008V, NAICS 334220. No separate solicitation required. Contract period: August 30, 2022 – August 29, 2027.
Order on GSA AdvantageCHS-6 / Leidos
Common Hardware Systems 6th Generation
- Contract
- W15P7T-23-D-0003
- Prime
- Leidos
PTS products are available through the CHS-6 contract (W15P7T-23-D-0003), administered by Leidos under PEO C3T. Open to all DoD components and Federal civilian agencies. Government Purchase Cards accepted. CHS-6 support: usarmy.apg.peo-c3t.mbx.pd-chs-support@mail.mil.
Learn More About CHS-6DLA SOE/TLSP
Special Operational Equipment — Tailored Logistics Support Program
PTS products can be ordered through the DLA Troop Support Special Operational Equipment (SOE) Tailored Logistics Support Program using MIPR/MILSTRIP processes. One-time FOPOC registration with DLA is required (SOECustomerRegistration@dla.mil).
Contact PTSDirect Contract or Credit Card
Direct procurement from PTS is available via Direct Contract or Government Credit Card (GPC/IMPAC card) purchase only.
Contact PTSOrdering reference numbers
AS0158-HR-158 (AN/PRC-158 / 167)
5820-01-738-8657
AS0160-HR-160 (AN/PRC-160)
5820-01-738-8667
Cage Code
06AE7
Frequently asked questions
PTS manufactures dedicated Power Supply Docking Stations for the AN/PRC-117F, AN/PRC-117G, AN/PRC-150, AN/PRC-152, AN/PRC-158, AN/PRC-160, and AN/PRC-167 L3Harris tactical radio platforms. Eleven distinct PSDS configurations are available covering single radio, dual radio, and cross-platform combinations with power amplifiers. The AS0158-HR-158 supports both the AN/PRC-158 and AN/PRC-167. Contact PTS to confirm the correct model for your specific radio and mission configuration.
Yes. Several PTS L3Harris PSDS configurations are designed for cross-platform installations. The AS0117-HR-117G/152 docks combinations of AN/PRC-117G and AN/PRC-152. The AS0117-HR-117G/1523 and AS0117-HR-117G/1523HP dock AN/PRC-117G alongside SINCGARS RT-1523 ASIP radios. The AS0150-HR-5833/1523 docks AN/PRC-150 or AN/PRC-160 alongside RT-1523 ASIP.
All PTS L3Harris PSDS models require no assembly and no specialized tools. An operator can have the radio docked, powered, and operational in under 5 minutes from unpack to comms. The systems adapt automatically to any available AC or DC power source without manual reconfiguration.
PTS L3Harris PSDS systems are COTS designs suitable for expeditionary command posts, combat operation centers, forward operating bases, electronic direct support maintenance facilities, tactical and non-tactical vehicles, and garrison training ranges.
Yes. PTS holds GSA Multiple Award Schedule contract 47QSWA22D008V (NAICS 334220) and CHS-6 contract W15P7T-23-D-0003 (Prime: Leidos). Military customers can also order through the DLA Tailored Logistics Support Program using MIPR/MILSTRIP processes. The PTS DLA contract SPE7LX-26-D-0050 covers the SINCGARS PSDS line only. PTS Cage Code: 06AE7.
Calculate Your Battery Savings
Eliminate battery dependency entirely using AC or DC shore power.
Your Radio & Deployment
PSDS Model
AS0117-HR-117G
Battery use = radios × 2 batteries/radio/day
Continuous CP ops = 24
NTC = 21 days · deployment = 90–270 days
BB-2590/U: $218.23 (est.) · 2 batteries/radio/day · PSDS GSA: $7207
Your Savings Estimate
Total Battery Cost (this deployment)
$157,126
720 batteries × $218.23
PSDS Investment
$28,828
4 units at $7,207 GSA price
Net Savings This Deployment
$128,298
Estimated savings vs. BB-2590/U over 90 days
Payback Period
17 days
PSDS pays for itself after this many operational days
Estimated Annual Savings
$631,466
Based on 365-day ops, 5-year PSDS service life
Ready to eliminate battery dependency?
PSDS model: AS0117-HR-117G · GSA Contract 47QSWA22D008V · NAICS 334220 · GPC accepted
Estimates based on BB-2590/U (NSN 6140-01-490-4316) at $218.23/unit and a consumption rate of 2 batteries per radio per day under continuous CP operations. PSDS price shown at the current GSA schedule price (47QSWA22D008V catalog). Actual savings depend on operational tempo, procurement vehicle, and local battery pricing. PSDS service life assumed at 5 years for annual savings calculation. PTS Expeditionary Communications makes no warranty as to the accuracy of these estimates for any specific program.
